Products Description
Product Description
3.5T Japanese Engine Diesel 3 Stage Mast Fork Lift OEM Service Diesel Chariot Elevateur Technology Diesel Forklift
Diesel forklifts are designed to handle a wide variety of material handling tasks and can be customized with a range of load handling attachments. No matter the size, series, model or configuration, electric counterbalance forklifts provide strength and durability to perform over the long run.
Diesel Forklift Features:
1. Cast steel steering bridge is more stable and reliable
2. High strength steel chassis has good driving stability and safety3. Wide view mast gives operator an enhanced forward visibility4. Specially designed solid overhead guard provides additional security for operator5. Reliable instruments offer an easy access to the working conditionsof forklift truck6. Ergonomics seat makes operation much comfortable and relieves the fatigue7. Non-slip low pedal makes operating convenient and safe8. Powerful engine ensures forklift truck's high handling performance, offers instrinsical safety operation9. Higher ground clearance 135mm10. Iron engine cover, can be fixed11. Famous SHELL brand hydraulic oil12. CE,EPA,GOST,ISO approved
Diesel Forklift Parameter:
| General | 1 | Model | FD15 | FD20 | FD25 | |||
| 2 | Power Type | Diesel | Diesel | Diesel | ||||
| 3 | Rated Capacity | kg | 1500 | 2000 | 2500 | |||
| 4 | Load Centre | mm | 500 | 500 | 500 | |||
Characteristic & Dimension | 5 | Lift Height | mm | 3000 | 3000 | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 920×120×35 | 1070×120×40 | 1070×120×40 | ||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | ||
| 8 | Front Overhang (Wheel center to fork face) | mm | 410 | 465 | 465 | |||
| 9 | Ground Clearance(Bottom of mast) | mm | 110 | 110 | 110 | |||
| 10 | Overall Dimension | Length to face of fork(Without fork) | mm | 2285 | 2595 | 2595 | ||
| 11 | Overall Width | mm | 1086 | 1150 | 1150 | |||
| 12 | Mast Lowered Height | mm | 1995 | 2070 | 2070 | |||
| 13 | Mast Extended Height(With backrest) | mm | 3940 | 4070 | 4070 | |||
| 14 | Overhead Guard Height | mm | 2040 | 2070 | 2070 | |||
| 15 | Turning Radius (outside) | mm | 2055 | 2310 | 2310 | |||
| Performance | 16 | Speed | Travel (Full load) | km/h | 15 | 19 | 19 | |
| 17 | Lifting (Full load) | mm/s | 450 | 530 | 530 | |||
| 18 | Max.Gradeability (No load/Full load) | % | 20 | 20 | 20 | |||
| Chassis | 19 | Tire | Front | mm | 6.50-10-12PR | 7.00-12-12PR | 7.00-12-12PR | |
| 20 | Rear | mm | 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | |||
| 21 | Wheelbase | mm | 1400 | 1600 | 1600 | |||
| 22 | Service weight | kg | 2820 | 3590 | 3790 | |||
Power & Transmission | 23 | Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | 12/80 | |
| 24 | Engine | Model | C240 | S4S | ||||
| 25 | Manufacture | ISUZU | MITSUSHIBI | |||||
| 26 | Rated output/r.p.m. | kw | 35.4/2500 | 35.3/2250 | ||||
| 27 | Rated torque/r.p.m. | N·m | 137.7/1800 | 177/1700 | ||||
| 28 | No.of Cylinder | 4 | 4 | |||||
| 29 | Bore×Stroke | mm | 86×102 | 94×120 | ||||
| 30 | Displacement | cc | 2369 | 3331 | ||||
| 31 | Fuel Tank Capacity | L | 45 | 60 | ||||
| 32 | Transmission | Type | Hydraulic | Hydraulic | ||||
| 33 | Stage | FWD/RVS | 1/1 | 1/1 | ||||

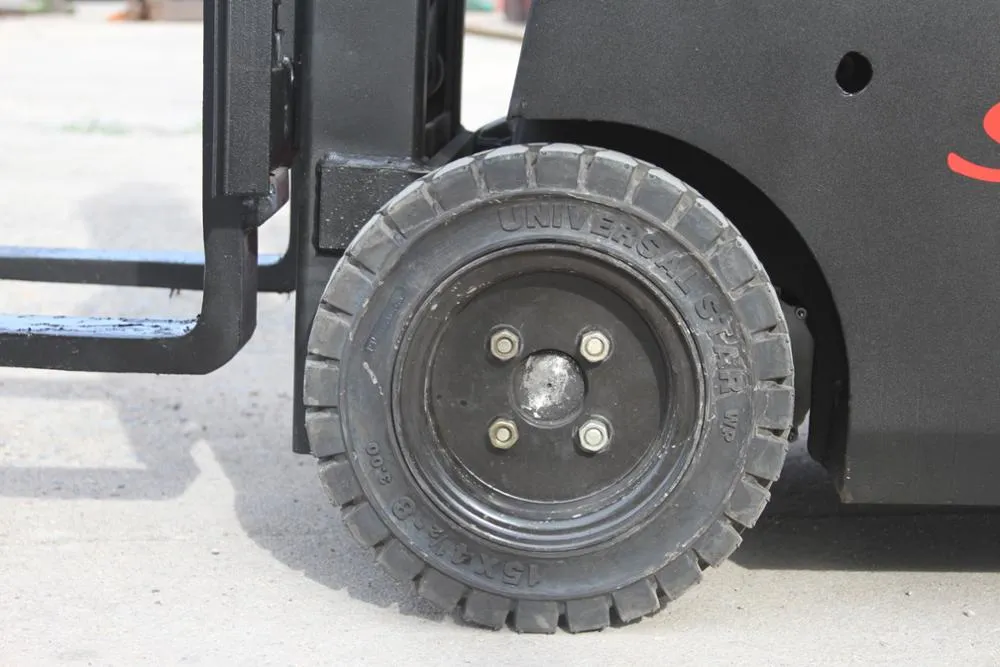

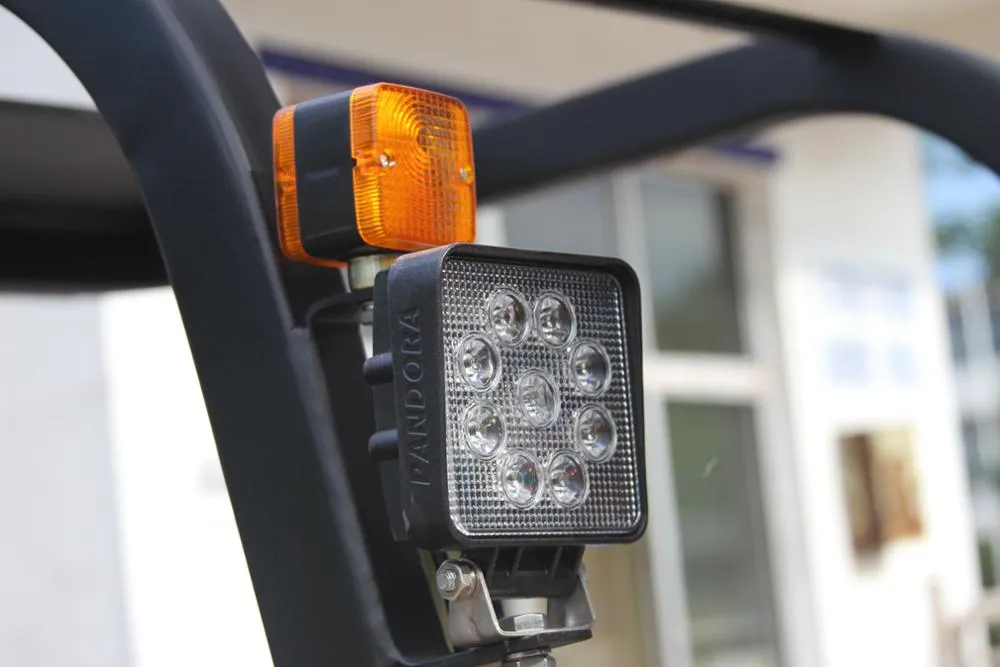

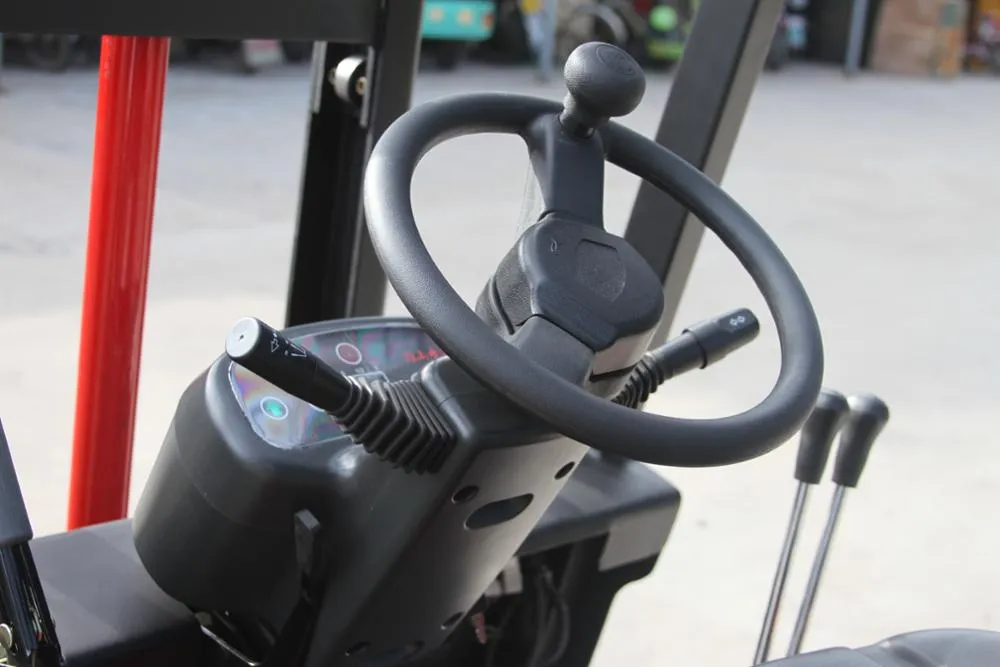

Diesel Forklift Details:

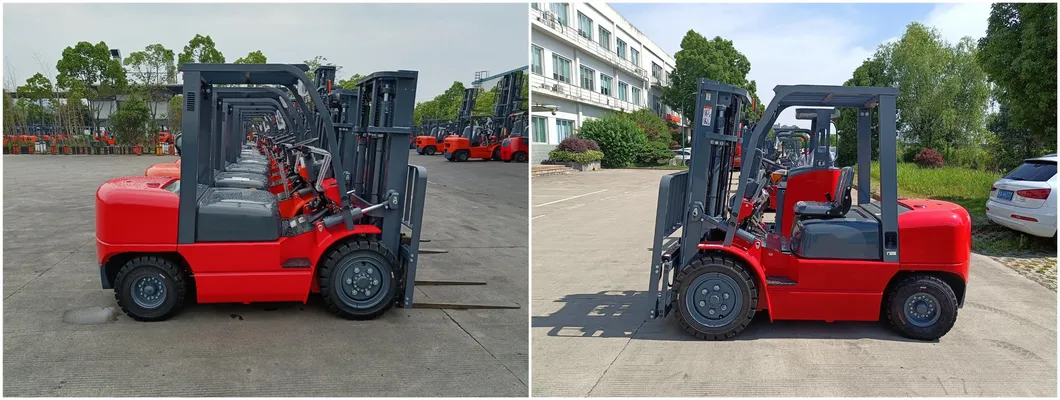

Diesel Forklift Picture:
